Activity History (dev)

Canopy maintains project activities within the project space. Project activity history is archived when the admin archives the project and disposed of when the admin deletes the project.

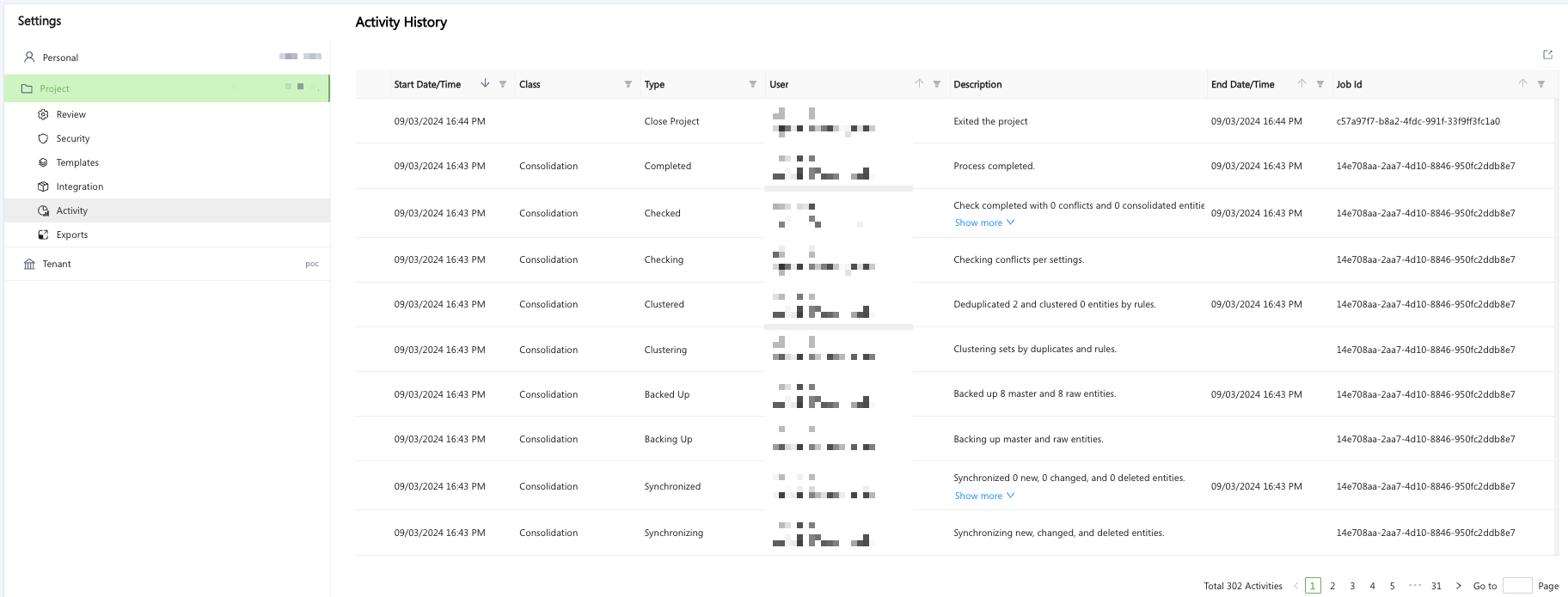

Project Administrators can view the Activity History page by clicking on the Activity tab under Project Settings.

Legacy activities do not follow the same format and will be converted over time. Canopy supports legacy formatted activities by mapping the fields as follows:

Some activities are associated with a job. Job ID allows users to group events related by activity. Job activity can be used to understand who, what, how, and when related work to a single action was applied.

1. Sign in as a Project Administrator.
2. Select the project you are working on.
3. In the upper-right corner of any page on Canopy, click Settings, click Project, and then click on Activities.

1. Select the Class filter from the header of the data grid.

1. Add Consolidation to is any of selected filter.
2. Once filtered, scroll to your right and copy the job ID of the run consolidation job you would like to filter.
3. Select the Job ID filter and paste the job ID you just copied into the filter.

1. Paste the job ID you just copied into the is any of these filter.
2. Done

Background jobs or services typically have states to reflect their lifecycle or current status. Here’s a list of job states:

Initial/Pre-Execution States (Appears in the Job Manager’s Working Tab)

• Created: Job has been initialized but not yet scheduled or processed.
• Queued: Waiting in line to be executed.
• Dequed: Job has been dequeued as part of a cancellation request.

Active States (Appears in the Job Manager’s Working Tab)

• Working: Actively being processed or executed.
• Waiting: Temporarily on hold, waiting for external resources or conditions to proceed.
• Canceling: The user pressed cancel, and the job is in the process of canceling.

Completion States (Appears in the Job Manager’s Completed Tab)

• Completed: Successfully finished processing without errors.
• Canceled: Terminated by external intervention before completion.
• Partially Completed: Completed some work completed successfully but encountered issues with others.

Completed with Error (Appears in the Job Manager’s Failed Tab)

• Failed: Execution terminated due to errors.
• Timed Out: Failed to complete within an allotted time frame.

---
title: Job Template
---
stateDiagram-v2
%% UX Text

    decision_process : Background task?
    cancel_process : User pressed cancel?
    error_process: Error encountered?
    queued_process: Job queued?
    backup_process : Backup supported?
    restore_process : Backup exists?
    retry_process : User selects retry job?

%% composites
    state working {
       [*]
    }
    state create {
        [*]
    }
    state timeout {
        [*]
    }
    state fail {
        [*]
    }
    state dequed {
        [*]
    }
    state canceling {
        [*]
    }
    state canceled {
        [*]
    }
    state enqueue {
        [*]
    }
    state partial {
        [*]
    }
    state completed {
        [*]
    }
    state waiting {
        [*]
    }
    state backup {
        [*]
    }
    state restore {
        [*]
    }
    state retry {
        [*]
    }

%% choices
	state background_choice <<choice>>
    state cancel_choice <<choice>>
    state error_choice <<choice>>
    state queued_choice <<choice>>
    state backup_choice <<choice>>
    state restore_choice <<choice>>
    state retry_choice <<choice>>
%% forks
state fork_state <<fork>>
      create --> fork_state
      fork_state --> cancel_process
      fork_state --> decision_process
      fork_state --> error_process

%% state diagram
    %% Request job
    [*] --> create

    %% Run task
    decision_process --> background_choice
	background_choice --> working : No, start process in foreground
	background_choice --> enqueue : Yes, enqueue in background
    enqueue --> backup_process
    backup_process --> backup_choice
    backup_choice --> backup : Yes, backup
    backup_choice --> working : No, start work
    backup --> working : Start work


    working --> waiting : Resource constraint
    waiting --> working : Retry job
    working --> completed : Completed - Success
    working --> partial : Completed - Partial Success
    completed --> [*]
    partial --> [*]

    cancel_process --> cancel_choice : Yes
    cancel_choice --> queued_process
    cancel_choice --> cancel_process : No, listen for cancel

    queued_process --> queued_choice
    queued_choice --> dequed : Yes, dequeue job
    queued_choice --> canceling : No, cancel work

    canceling --> restore_process
    restore_process --> restore_choice
    restore_choice --> restore : Backup exists, restore
    restore_choice --> canceled :  Completed - Canceled Work
    restore --> canceled  : Completed - Canceled Work and Restored Previous State

    dequed --> canceled : Completed - Dequeued Job
    canceled --> [*]

    error_process --> error_choice : Yes
    error_choice --> fail : Completed - Failure Error
    error_choice --> timeout : Incomplete - Failure Time Out
    error_choice --> error_process : No, listen for error

    fail --> [*]
    timeout --> retry_process
    retry_process --> retry_choice
    retry_choice --> retry : Yes, queue to try again
    retry_choice --> retry_process : No, listen for retry
    retry --> enqueue

Classes are created to logically group activity types that belong to the same module or workflow in the application.

The following is a list of activities captured by class:

Type	Description	Example
Download	Downloaded an export.

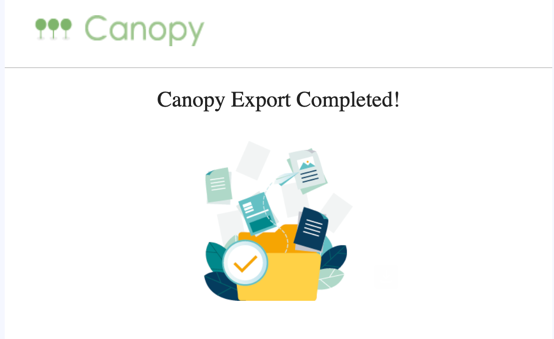

Complete Email	Subject: Canopy Export Completed! – when document related exports completed From: {{from_email}} To: {{to_email}} Message ID: {{MessageId}}
Link	Created a temporary download link for an export.

Type	Description	Example

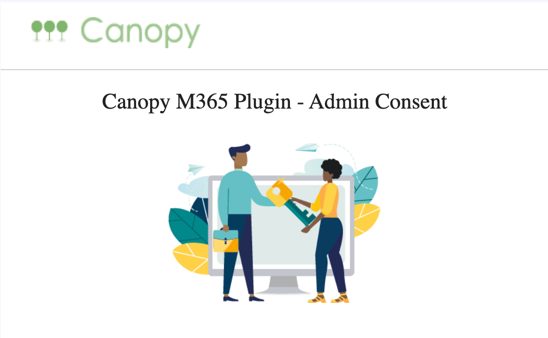

Consent Email	Subject: Canopy M365 Plugin - Admin Consent From: {{from_email}} To: {{to_email}} Message ID: {{MessageId}}

---
title: Entity Deletion
---
stateDiagram-v2
%% UX Text
backup : Back Up
backup : Back Up
backup.backup_completed : Backup completed
backup : Back Up
backup.backup_started : Backup started
canceled : Canceled
canceled : Canceled
canceled.canceled : Process terminated by user successfully.
canceling : Canceling
canceling : Canceling
canceling.canceling : The user pressed cancel, and the job is in the process of canceling.
completed : Completed
completed : Completed
completed.document_entity_delete : Deleted $t(raw_entities, {"count" {{raw_entities}} }) from document <CPY_SEARCH_ID_LINK_BTN>{{search_id}}</CPY_SEARCH_ID_LINK_BTN> and updated $t(master_entities, {"count" {{master_entities}} }).
completed : Completed
completed.entity_list_delete : Deleted $t(raw_entities, {"count" {{raw_entities}} }), deleted $t(master_entities, {"count" {{master_entities}} }), and updated $t(master_entities, {"count" {{master_entities}} }) impacting $t(documents, {"count"{{documents}} }).
completed : Completed
completed.master_entity_detail_entity_delete : Deleted $t(raw_entities, {"count" {{raw_entities}} }) from entity detail view document <CPY_SEARCH_ID_LINK_BTN>{{search_id}}</CPY_SEARCH_ID_LINK_BTN> and updated $t(master_entities, {"count" {{master_entities}} }).
create : Create
create : Create
create.select_all_entities_from_document : Selected <strong>all</strong> resulting in $t(raw_entities, {"count" {{raw_entities}} }) from a document in Document View in document <CPY_SEARCH_ID_LINK_BTN>{{search_id}}</CPY_SEARCH_ID_LINK_BTN>.
create : Create
create.select_all_entities_from_sheet : Selected <strong>all</strong> resulting in $t(raw_entities, {"count" {{raw_entities}} }) from a sheet in Document View in document <CPY_SEARCH_ID_LINK_BTN>{{search_id}}</CPY_SEARCH_ID_LINK_BTN>.
create : Create
create.select_checkboxes_from_master_list : Selected $t(master_entities, {"count" {{master_entities}} }) by checking boxes on the Consolidated Entity List.
create : Create
create.select_checkboxes_from_raw_list : Selected $t(raw_entities, {"count" {{raw_entities}} }) by checking boxes on the Raw Entity List.
create : Create
create.select_filters_from_master_list : Selected $t(master_entities, {"count" {{master_entities}} }) by applying filters to the Consolidated Entity List.
create : Create
create.select_filters_from_raw_list : Selected $t(raw_entities, {"count" {{raw_entities}} }) by applying filters to the Raw Entity List.
create : Create
create.select_single_entity_from_document : Selected a single raw entity from the Document View in document <CPY_SEARCH_ID_LINK_BTN>{{search_id}}</CPY_SEARCH_ID_LINK_BTN>.
create : Create
create.select_single_entity_from_master_entity_detail : Selected a single related raw entity from a consolidated entity's Master Entity Detail screen. The raw entity was from document <CPY_SEARCH_ID_LINK_BTN>{{search_id}}</CPY_SEARCH_ID_LINK_BTN>.
dequeued : Dequeued
dequeued : Dequeued
dequeued.dequeued : The user pressed cancel and system dequeued the Job.
enqueue : Enqueue
enqueue : Enqueue
enqueue.enqueue : Waiting to be executed.
fail : Fail
fail : Fail
fail.failed : Job terminated unexpectedly. Open a customer support ticket and request assistance.
fail : Fail
fail.failed_service_not_available : Job failed because service was not available. Open a customer support ticket and request assistance.
partial : Partially Completed
partial : Partially Completed
partial.partial_document_entity_delete : Deleted $t(raw_entities, {"count" {{raw_entities}} }) from document <CPY_SEARCH_ID_LINK_BTN>{{search_id}}</CPY_SEARCH_ID_LINK_BTN>, updated {{master_entities}}, and skipped {{entities}}.
partial : Partially Completed
partial.partial_entity_list_delete : Deleted $t(raw_entities, {"count" {{raw_entities}} }), deleted $t(master_entities, {"count" {{master_entities}} }), and updated $t(master_entities, {"count" {{master_entities}} }) impacting $t(documents, {"count" {{documents}} }).  Skipped $t(raw_entities, {"count" {{raw_entities}} }).
restore : Restore
restore : Restore
restore.restore_completed : Restore completed
restore : Restore
restore.restore_started : Restore started
retry : Retry
timeout : Timed Out
timeout : Timed Out
timeout.timeout : Failed to complete within the allotted time frame. Open a customer support ticket and request for Canopy to retry the job.
waiting : Waiting
waiting : Waiting
waiting.waiting : Process temporarily on hold, waiting for external resources or conditions to proceed.
working : Working
working : Working
working.deleting_clustered : Deleting $t(clustered_entities, {"count" {{clustered_entities}} })
working : Working
working.deleting_master : Deleting $t(master_entities, {"count" {{master_entities}} }) containing no merged or clustered entities
working : Working
working.deleting_merged : Deleting $t(merged_entities, {"count" {{merged_entities}} })
working : Working
working.deleting_raw : Deleting $t(raw_entities, {"count" {{raw_entities}} })
working : Working
working.deleting_raw_from_master : Deleting Raw Entities From Masters
working : Working
working.deleting_raw_from_raw : Deleting Raw Entities From Documents or Raw List
working : Working
working.updating_masters : Updating $t(master_entities, {"count" {{master_entities}} })
    decision_process : Background task?
    cancel_process : User pressed cancel?
    error_process : Error encountered?
    queued_process : Job queued?
    backup_process : Backup supported?
    restore_process : Backup exists?
    retry_process : User selects retry job?


%% composites
    state create {
        direction LR
        create.select_all_entities_from_document
        create.select_all_entities_from_sheet
        create.select_checkboxes_from_raw_list
        create.select_filters_from_raw_list
        create.select_checkboxes_from_master_list
        create.select_filters_from_master_list
        create.select_single_entity_from_document
        create.select_single_entity_from_master_entity_detail
    }

    state working {
       [*] --> working.deleting_raw_from_master
       working.deleting_raw_from_master --> [*]
       [*] --> working.deleting_raw_from_raw
       working.deleting_raw_from_raw --> [*]
       %%working_deleting_raw_from_master --> working_delete_entity
       %%working_delete_entity --> working_deleting_raw_from_master
       %%working_deleting_raw_from_raw --> working_delete_entity
       %%working_delete_entity --> working_deleting_raw_from_raw

    }
    state working.deleting_raw_from_raw {
        working.deleting_raw --> working.updating_masters
    }

    state backup {
        backup.backup_started --> backup.backup_completed
    }

    state restore {
        restore.restore_started --> restore.restore_completed
    }

    state working.deleting_raw_from_master {
        working.deleting_master --> working.deleting_clustered
        working.deleting_clustered --> working.deleting_merged
    }
    state timeout {
        timeout.timeout
    }
    state fail {
        direction LR
        fail.failed
        fail.failed_service_not_available
    }

    state dequeued {
        dequeued.dequeued
    }
    state canceling {
        canceling.canceling
    }
    state canceled {
        canceled.canceled
    }
    state enqueue {
        enqueue.enqueue
    }
    state partial {
        direction LR
        partial.partial_document_entity_delete
        partial.partial_entity_list_delete
    }
    state completed {
        direction LR
        completed.document_entity_delete
        completed.entity_list_delete
        completed.master_entity_detail_entity_delete
    }
    state waiting {
        waiting.waiting
    }
    state retry {
        [*]
    }



%% choices
	state background_choice <<choice>>
    state cancel_choice <<choice>>
    state error_choice <<choice>>
    state queued_choice <<choice>>
    state backup_choice <<choice>>
    state restore_choice <<choice>>
    state retry_choice <<choice>>

%% forks
state fork_state <<fork>>
      create --> fork_state
      fork_state --> cancel_process
      fork_state --> decision_process
      fork_state --> error_process

%% state diagram
    %% Request job
    [*] --> create


    %% Run task
    decision_process --> background_choice
	background_choice --> backup_process : No, start process in foreground
	background_choice --> enqueue : Yes, enqueue in background

    enqueue --> backup_process
    backup_process --> backup_choice
    backup_choice --> backup : Yes, backup
    backup_choice --> working : No, go to work
    backup --> working : Start work
    working --> waiting : Resource constraint
    waiting --> working : Retry job
    working --> completed : Completed - Success
    working --> partial : Completed - Partial Success
    completed --> [*]
    partial --> [*]


    cancel_process --> cancel_choice : Yes
    cancel_choice --> queued_process
    cancel_choice --> cancel_process : No, listen for cancel

    queued_process --> queued_choice
    queued_choice --> dequeued : Yes, dequeue job
    queued_choice --> canceling : No, cancel work

    canceling --> restore_process
    restore_process --> restore_choice
    restore_choice --> restore : Backup exists, restore
    restore_choice --> canceled :  Completed - Canceled Work
    restore --> canceled  : Completed - Canceled Work and Restored Previous State
    dequeued --> canceled : Completed - Dequeued Job
    canceled --> [*]

    error_process --> error_choice : Yes
    error_choice --> fail : Yes, Completed - Failure Error
    error_choice --> timeout : Yes, Incomplete - Failure Time Out
    error_choice--> error_process : No, listen for error

    fail --> [*]
    timeout --> retry_process
    retry_process --> retry_choice
    retry_choice --> retry : Yes, queue to try again
    retry_choice --> retry_process : No, listen for retry
    retry --> enqueue

---
title: Audio Transcription
---
stateDiagram-v2
%% UX Text
completed : Completed
completed : Completed
completed.delete_entity_success : Job <CPY_TAG_LABEL>{{job_id}}</CPY_TAG_LABEL> deleted $t(raw_entities, {"count" {{raw_entities}} }).
partial : Partially Completed
partial : Partially Completed
partial.delete_entity_skipped : Job <CPY_TAG_LABEL>{{job_id}}</CPY_TAG_LABEL> deleted $t(documents, {"count" {{documents}} }) ({{val, list}}) and skipped deleting $t(documents, {"count" {{documents}} }) ({{val, list}}).
    results_process : Was the transcription successful?

%% choices
	state results_choice <<choice>>

%% states
  state completed {
    direction LR
    completed.delete_entity_success
  }
  state partial {
    direction LR
    partial.delete_entity_skipped

  }

%% state diagram
    %% Request job
    results_process --> results_choice
    results_choice --> completed : Yes
    results_choice --> partial : Partially

---
title: preprocessing
---
stateDiagram-v2
%% UX Text
backup : Back Up
backup : Back Up
backup.backup_completed : Backup completed
backup : Back Up
backup.backup_started : Backup started
canceled : Canceled
canceled : Canceled
canceled.canceled : Process terminated by user successfully.
canceling : Canceling
canceling : Canceling
canceling.canceling : The user pressed cancel, and the job is in the process of canceling.
completed : Completed
completed : Completed
completed.completed : Successfully finished processing without errors.
create : Create
create : Create
create.created : Job has been initialized but not yet scheduled or processed.
dequeued : Dequeued
dequeued : Dequeued
dequeued.dequeued : The user pressed cancel and system dequeued the Job.
enqueue : Enqueue
enqueue : Enqueue
enqueue.enqueue : Waiting to be executed.
fail : Fail
fail : Fail
fail.failed : Job terminated unexpectedly. Open a customer support ticket and request assistance.
partial : Partially Completed
partial : Partially Completed
partial.partial : Some work completed successfully but encountered issues with others.
restore : Restore
restore : Restore
restore.restore_completed : Restore completed
restore : Restore
restore.restore_started : Restore started
retry : Retry
retry : Retry
retry.retry : User selected retry.
timeout : Timed Out
timeout : Timed Out
timeout.timeout : Failed to complete within the allotted time frame. Open a customer support ticket and request for Canopy to retry the job.
waiting : Waiting
waiting : Waiting
waiting.waiting : Process temporarily on hold, waiting for external resources or conditions to proceed.
working : Working
working : Working
working.working : Actively being processed or executed.
    decision_process : Background task?
    cancel_process : User pressed cancel?
    error_process : Error encountered?
    queued_process : Job queued?
    backup_process : Backup supported?
    restore_process : Backup exists?
    retry_process : User selects retry job?

%% composites
    state create {
        direction LR
        create.created
    }
    state working {
       [*] --> working.working
       working.working --> [*]
    }
    state backup {
        backup.backup_started --> backup.backup_completed
    }
    state restore {
        restore.restore_started --> restore.restore_completed
    }
    state timeout {
        timeout.timeout
    }
    state fail {
        fail.failed
    }
    state dequeued {
        dequeued.dequeued
    }
    state canceling {
        canceling.canceling
    }
    state canceled {
        canceled.canceled
    }
    state enqueue {
        enqueue.enqueue
    }
    state partial {
        direction LR
        partial.partial
    }
    state completed {
        direction LR
        completed.completed
    }
    state waiting {
        waiting.waiting
    }
    state retry {
        retry.retry
    }

%% choices
	state background_choice <<choice>>
    state cancel_choice <<choice>>
    state error_choice <<choice>>
    state queued_choice <<choice>>
    state backup_choice <<choice>>
    state restore_choice <<choice>>
    state retry_choice <<choice>>

%% forks
state fork_state <<fork>>
      create --> fork_state
      fork_state --> cancel_process
      fork_state --> decision_process
      fork_state --> error_process

%% state diagram
    %% Request job
    [*] --> create


    %% Run task
    decision_process --> background_choice
	background_choice --> backup_process : No, start process in foreground
	background_choice --> enqueue : Yes, enqueue in background

    enqueue --> backup_process
    backup_process --> backup_choice
    backup_choice --> backup : Yes, backup
    backup_choice --> working : No, go to work
    backup --> working : Start work
    working --> waiting : Resource constraint
    waiting --> working : Retry job
    working --> completed : Completed - Success
    working --> partial : Completed - Partial Success
    completed --> [*]
    partial --> [*]


    cancel_process --> cancel_choice : Yes
    cancel_choice --> queued_process
    cancel_choice --> cancel_process : No, listen for cancel

    queued_process --> queued_choice
    queued_choice --> dequeued : Yes, dequeue job
    queued_choice --> canceling : No, cancel work

    canceling --> restore_process
    restore_process --> restore_choice
    restore_choice --> restore : Backup exists, restore
    restore_choice --> canceled :  Completed - Canceled Work
    restore --> canceled  : Completed - Canceled Work and Restored Previous State
    dequeued --> canceled : Completed - Dequeued Job
    canceled --> [*]

    error_process --> error_choice : Yes
    error_choice --> fail : Yes, Completed - Failure Error
    error_choice --> timeout : Yes, Incomplete - Failure Time Out
    error_choice--> error_process : No, listen for error

    fail --> [*]
    timeout --> retry_process
    retry_process --> retry_choice
    retry_choice --> retry : Yes, queue to try again
    retry_choice --> retry_process : No, listen for retry
    retry --> enqueue

---
title: Audio Transcription
---
stateDiagram-v2
%% UX Text
canceled : Canceled
canceled : Canceled
canceled.partial_transcription : Transcribed $t(documents, {"count" {{documents}} }), skipped $t(unsupported_documents, {"count" {{unsupported_documents}} }), and encountered errors on $t(documents, {"count" {{documents}} }).
canceling : Canceling
canceling : Canceling
canceling.canceling : The user pressed cancel, and the job is in the process of canceling.
completed : Completed
completed : Completed
completed.completed_transcription : Transcribed $t(documents, {"count" {{documents}} }).
create : Create
create : Create
create.select_checkboxes_from_document_list : Selected $t(checkboxes, {"count" {{checkboxes}} }) from the document list.
dequeued : Dequeued
dequeued : Dequeued
dequeued.dequeued : The user pressed cancel and system dequeued the Job.
enqueue : Enqueue
enqueue : Enqueue
enqueue.enqueue : Waiting to be executed.
fail : Fail
fail : Fail
fail.failed : Job terminated unexpectedly. Open a customer support ticket and request assistance.
partial : Partially Completed
partial : Partially Completed
partial.partial_transcription : Transcribed $t(documents, {"count" {{documents}} }), skipped $t(unsupported_documents, {"count" {{unsupported_documents}} }), and encountered errors on $t(documents, {"count" {{documents}} }).
working : Working
working : Working
working.transcribing : Transcribing $t(documents, {"count" {{documents}} }).
    decision_process : Background task?
    cancel_process : User pressed cancel?
    error_process : Error encountered?
    queued_process : Job queued?


%% composites
    state create {
        direction LR
        create.select_checkboxes_from_document_list
    }
    state working {
       [*] --> working.transcribing
       working.transcribing --> [*]
    }

    state fail {
        direction LR
        fail.failed

    }
    state dequeued {
        dequeued.dequeued
    }
    state canceling {
        canceling.canceling
    }
    state canceled {
        canceled.partial_transcription
    }
    state enqueue {
        enqueue.enqueue
    }
    state partial {
        direction LR
        partial.partial_transcription
    }
    state completed {
        direction LR
        completed.completed_transcription
    }



%% choices
	state background_choice <<choice>>
    state cancel_choice <<choice>>
    state error_choice <<choice>>
    state queued_choice <<choice>>



%% forks
state fork_state <<fork>>
      create --> fork_state
      fork_state --> cancel_process
      fork_state --> decision_process
      fork_state --> error_process

%% state diagram
    %% Request job
    [*] --> create

    %% Run task
    decision_process --> background_choice
	background_choice --> working : No, start process in foreground
	background_choice --> enqueue : Yes, enqueue in background

    enqueue --> working : Start work
    working --> completed : Completed - Success
    working --> partial : Completed - Partial Success
    completed --> [*]
    partial --> [*]

    cancel_process --> cancel_choice : Yes
    cancel_choice --> queued_process
    cancel_choice --> cancel_process : No, listen for cancel

    queued_process --> queued_choice
    queued_choice --> dequeued : Yes, dequeue job
    queued_choice --> canceling : No, cancel work

    canceling --> canceled :  Completed - Canceled Work
    dequeued --> canceled : Completed - Dequeued Job
    canceled --> [*]

    error_process --> error_choice : Yes
    error_choice --> fail : Yes, Completed - Failure Error
    error_choice--> error_process : No, listen for error

    fail --> [*]

---
title: Audio Transcription
---
stateDiagram-v2
%% UX Text
completed : Completed
completed : Completed
completed.transcription_success : Job <CPY_TAG_LABEL>{{job_id}}</CPY_TAG_LABEL> added transcription to document.
skipped : Skipped
skipped : Skipped
skipped.transcription_file_already_transcribed_skipped : Job <CPY_TAG_LABEL>{{job_id}}</CPY_TAG_LABEL> skipped transcription because document already transcribed.
skipped : Skipped
skipped.transcription_file_not_supported_skipped : Job <CPY_TAG_LABEL>{{job_id}}</CPY_TAG_LABEL>  skipped transcription because document type is not a supported.
failed : Failed
failed : Failed
failed.transcription_download_failed : Job <CPY_TAG_LABEL>{{job_id}}</CPY_TAG_LABEL> encountered error downloading document for transcription.
failed : Failed
failed.transcription_transcription_failed : Job <CPY_TAG_LABEL>{{job_id}}</CPY_TAG_LABEL> encountered unknown error transcribing document.
failed : Failed
failed.transcription_transform_failed : Job <CPY_TAG_LABEL>{{job_id}}</CPY_TAG_LABEL> encountered error transforming document for transcription.
failed : Failed
failed.transcription_upload_failed : Job <CPY_TAG_LABEL>{{job_id}}</CPY_TAG_LABEL> encountered error uploading transcription.
   results_process : Was the transcription successful?

%% choices
	state results_choice <<choice>>

%% states
  state completed {
    completed.transcription_success
  }
  state skipped {
    direction LR
    skipped.transcription_file_already_transcribed_skipped
    skipped.transcription_file_not_supported_skipped
  }
  state failed {
    direction LR
    failed.transcription_download_failed
    failed.transcription_transform_failed
    failed.transcription_transcription_failed
    failed.transcription_upload_failed
  }

%% state diagram
    %% Request job
    results_process --> results_choice
    results_choice --> completed : Yes
    results_choice --> skipped : No
    results_choice --> failed : No

---
title: Import Users
---
stateDiagram-v2
%% UX Text
canceled : Canceled
canceled : Canceled
canceled.canceled : Process terminated by user successfully.
completed : Completed
completed : Completed
completed.completed_import_users : Imported $t(users, {"count" {{users}} }).
create : Create
create : Create
create.map_users : Mapped list of users
create : Create
create.upload_users : Uploaded $t(users, {"count" {{users}} })
enqueue : Enqueue
enqueue : Enqueue
enqueue.enqueue : Waiting to be executed.
fail : Fail
fail : Fail
fail.failed : Job terminated unexpectedly. Open a customer support ticket and request assistance.
partial : Partially Completed
partial : Partially Completed
partial.partial_import_users : Imported $t(users, {"count" {{users}} }), deduplicated $t(users, {"count" {{users}} }), and encountered errors importing $t(users, {"count" {{users}} }).
working : Working
working : Working
working.users_importing : Importing list of users

    cancel_process : User pressed cancel?
    error_process : Error encountered?


%% composites
    state create {
        create.upload_users --> create.map_users
    }
    state working {
       [*] --> working.users_importing
       working.users_importing --> [*]
    }
    state fail {
        fail.failed
    }

    state canceled {
        canceled.canceled
    }
    state enqueue {
        enqueue.enqueue
    }
    state partial {
        direction LR
        partial.partial_import_users
    }
    state completed {
        direction LR
        completed.completed_import_users
    }


%% choices
    state cancel_choice <<choice>>
    state error_choice <<choice>>


%% forks
state fork_state <<fork>>
      create --> fork_state
      fork_state --> cancel_process
      fork_state --> decision_process
      fork_state --> error_process

%% state diagram
    %% Request job
    [*] --> create


    %% Run task
    decision_process --> enqueue : Yes, enqueue in background

    enqueue --> working : Start workx
    working --> completed : Completed - Success
    working --> partial : Completed - Partial Success
    completed --> [*]
    partial --> [*]

    cancel_process --> cancel_choice : Yes
    cancel_choice --> canceled
    cancel_choice --> cancel_process : No, listen for cancel


    canceled --> [*]

    error_process --> error_choice : Yes
    error_choice --> fail : Yes, Completed - Failure Error
    error_choice--> error_process : No, listen for error

    fail --> [*]
